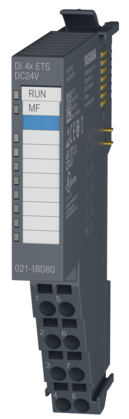

SM 021 - Digital Input - 021-1BD80

• Current consumption from backplane bus
• 32 mA

• Power Loss
• 0.6 W

• Number of inputs (digital)
• 4

• Rated load voltage (digital)
• DC 24 V

• Current consumption from load voltage L+ (without load)
• 18 mA

• Signal logic input (digital)
• Sourcing input

• Input characteristic curve (digital)
• IEC 61131-2, type 3

• Initial data size (digital)
• 480 bit

• Number of outputs (digital)
• x Nein

• Rated load voltage (digital output)
• x Nein

• Current consumption from load voltage L+ (without load)
• x Nein

• Signal logic output (digital)
• x Nein

• Number of inputs (analog)
• x Nein

• Rated load voltage (analog)
• x Nein

• Voltage inputs (analog)
• x Nein

• Current inputs (analog)
• x Nein

• Measurement principle
• x Nein

• Number of outputs (analog)
• x Nein

• Output voltage ranges
• x Nein

• Output current ranges
• x Nein

• Number of counters
• x Nein

• Number of channels
• x Nein

• Power stage
• x Nein

• Geber-Typ
• x Nein

• Control type
• x Nein

• Number of clamps
• x Nein

• Binding of potential
• x Nein

• Point-to-point protocol
• x Nein

• Encoder Supply: Number of outputs (L+n)
• x Nein

• Port mode
• x Nein

• Memory card slot
• x Nein

• Racks, max.
• x Nein

• Modules per rack, max.
• x Nein

• Fieldbus
• x Nein

• Connector
• x Nein

• Topology
• x Nein

• Material
• PPE / PPE GF10

• Montage
• Profile rail 35 mm

• Breite
• 12.9 mm

• Höhe
• 109 mm

• Tiefe
• 76.5 mm

• Nettogewicht
• 58 g

• Bruttogewicht
• 73 g

• Zertifizierungen
• UL, KC, UKCA, China RoHS

• Safety protocol
• x Nein

• Safety requirements
• x Nein

• Circuit monitoring
• x Nein

• Min. Betriebstemperatur
• -25 °C

• Max. Betriebstemperatur
• 70 °C
